Eurovision: Sweden and Ireland Lead with the Most Wins

Tracking Eurovision Wins by Country from 1956 to 2024

#SWDchallenge

Author

Steven Ponce

Published

November 1, 2024

Original

The goal of this month’s #SWDchallenge is to make a good graph. For my submission, I decided to revisit a #dataviz from early in my journey. The chart below was my submission for the 2022 #TidyTuesday week 20 challenge. The goal back then was to visualize the countries with more than three Eurovision wins.

Additional information about this month’s #SWDchallenge can be found HERE

Makeover

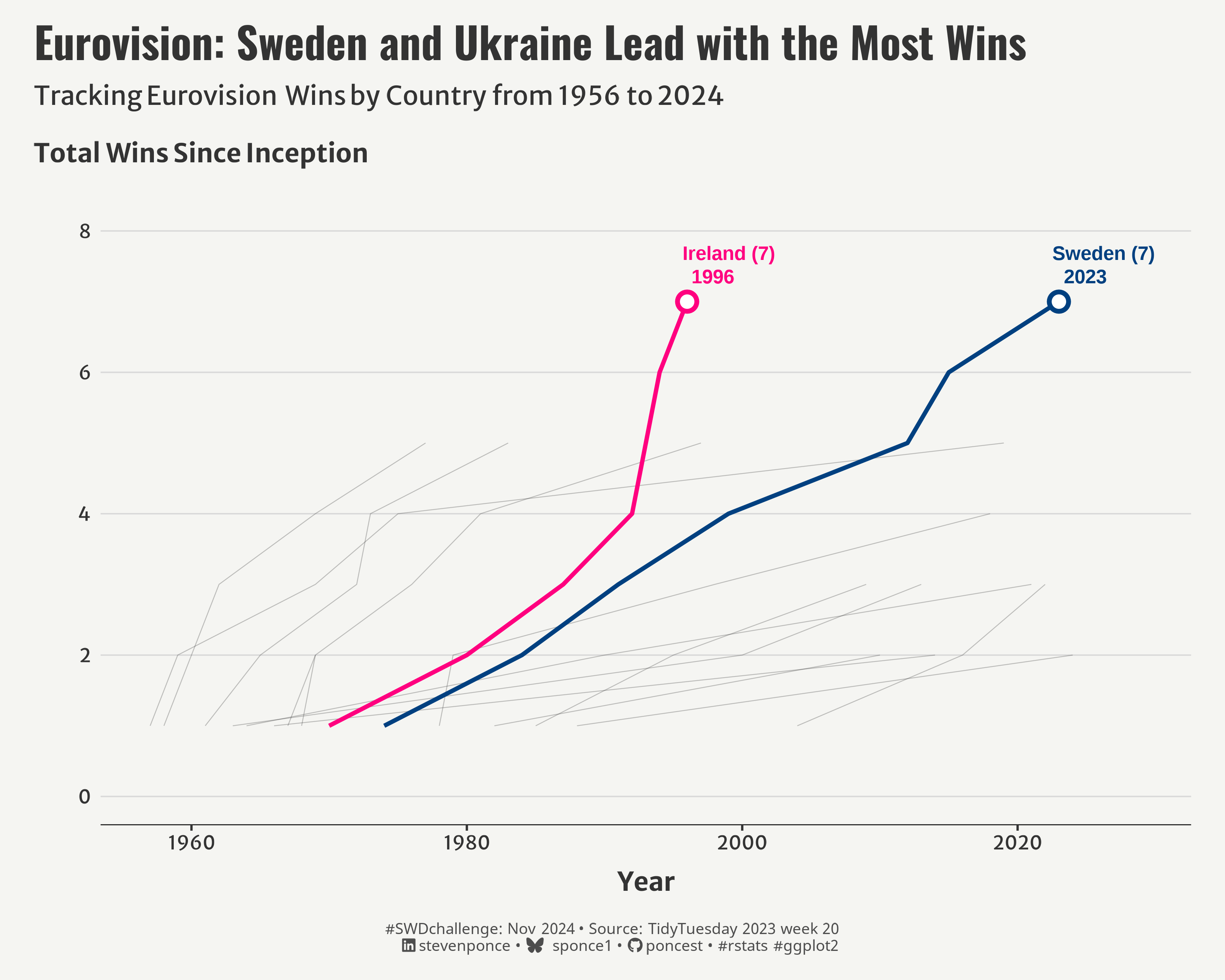

Figure 2: Line chart showing cumulative Eurovision wins by country from 1956 to 2024. Sweden and Ireland lead with 7 wins each, with Ireland’s most recent win in 1996 and Sweden’s in 2023. Other countries have fewer wins, depicted in gray.

Steps to Create this Graphic

1. Load Packages & Setup

Code

if (!require("pacman")) install.packages("pacman")
pacman::p_load(
  tidyverse,         # Easily Install and Load the 'Tidyverse'
  ggtext,            # Improved Text Rendering Support for 'ggplot2'
  showtext,          # Using Fonts More Easily in R Graphs
  janitor,           # Simple Tools for Examining and Cleaning Dirty Data
  skimr,             # Compact and Flexible Summaries of Data
  scales,            # Scale Functions for Visualization
  glue,              # Interpreted String Literals
  here,              # A Simpler Way to Find Your Files
  tidytuesdayR,      # Access the Weekly 'TidyTuesday' Project Dataset
  ggrepel            # Automatically Position Non-Overlapping Text Labels with 'ggplot2'
)

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 10,
  height = 8,
  units  = "in",
  dpi    = 320)

### |- resolution ----
showtext_opts(dpi = 320, regular.wt = 300, bold.wt = 800)

2. Read in the Data

Code

eurovision <- tidytuesdayR::tt_load(2022, week = 20)$eurovision %>%
  clean_names()

3. Examine the Data

Code

glimpse(eurovision)
skim(eurovision)
colnames(eurovision)

4. Tidy Data

Code

# Winners from 1956 to 2003
winners_1956_2003_tbl <- eurovision |>
  filter(year < 2004,
         section == 'final',
         winner == TRUE) |>
  select(year, host_city, artist_country, total_points, winner) |>
  arrange(desc(year)) |>
  drop_na()

# Winners from 2004 to 2022
winners_2004_2022_tbl <- eurovision |>
  filter(section == 'grand-final',
         winner == TRUE) |>
  select(year, host_city, artist_country, total_points, winner) |>
  arrange(desc(year)) |>
  drop_na()

# Winners for 2023 and 2024
winners_2023_2024_tbl <- tibble(
  year = c(2023, 2024),
  host_city = c("Liverpool", "Malmö"),
  artist_country = c("Sweden", "Switzerland"),
  total_points = c(583, 591),  # Placeholder points, adjust based on real data if available
  winner = TRUE
)

# Combine all winners
winners_combined_tbl <- bind_rows(winners_1956_2003_tbl, winners_2004_2022_tbl, winners_2023_2024_tbl) |>
  arrange(year) |>
  drop_na()

# Calculate cumulative wins by year
cumulative_data <- winners_combined_tbl |>
  group_by(year, artist_country) |>
  summarise(total_points = sum(total_points), .groups = "drop") |>
  arrange(year) |>
  group_by(artist_country) |>
  mutate(cumulative_wins = row_number()) |>
  ungroup()

# Define key countries to highlight
key_countries <- c("Sweden", "Ireland")

# Get the most recent year for each key country
latest_year_data <- cumulative_data |>
  filter(artist_country %in% key_countries) |>
  group_by(artist_country) |>
  filter(year == max(year)) |>
  ungroup()

5. Visualization Parameters

Code

### |- plot aesthetics ----
bkg_col      <- "#f5f5f2"
title_col    <- "gray20"
subtitle_col <- "gray20"
caption_col  <- "gray30"
text_col     <- "gray20"
col_palette  <- c("#FF007F", "#004080")

### |-  titles and caption ----
# icons
tt <- str_glue("#SWDchallenge: Nov 2024 &bull; Source: TidyTuesday 2023 week 20<br>")
li <- str_glue("<span style='font-family:fa6-brands'>&#xf08c;</span>")
gh <- str_glue("<span style='font-family:fa6-brands'>&#xf09b;</span>")
bs <- str_glue("<span style='font-family:fa6-brands'>&#xe671; </span>")

title_text    <- str_glue("Eurovision: Sweden and Ukraine Lead with the Most Wins")
subtitle_text <- str_glue("Tracking Eurovision Wins by Country from 1956 to 2024<br><br>
                          **Total Wins Since Inception**")
caption_text  <- str_glue("{tt} {li} stevenponce &bull; {bs} sponce1 &bull; {gh} poncest &bull; #rstats #ggplot2")

# |- fonts ----
font_add('fa6-brands', here::here("fonts/6.6.0/Font Awesome 6 Brands-Regular-400.otf"))
font_add_google("Oswald", regular.wt = 400, family = "title")
font_add_google("Merriweather Sans", regular.wt = 400, family = "subtitle")
font_add_google("Merriweather Sans", regular.wt = 400, family = "text")
font_add_google("Noto Sans", regular.wt = 400,family = "caption")
showtext_auto(enable = TRUE)

### |-  plot theme ----
theme_set(theme_minimal(base_size = 14, base_family = "text"))

theme_update(
  plot.title.position   = "plot",
  plot.caption.position = "plot",
  legend.position       = "plot",
  plot.background       = element_rect(fill = bkg_col, color = bkg_col),
  panel.background      = element_rect(fill = bkg_col, color = bkg_col),
  plot.margin           = margin(t = 10, r = 20, b = 10, l = 20),
  axis.title.x          = element_text(margin = margin(10, 0, 0, 0), size = rel(1.1),
                                       color = text_col, family = "text", face = "bold", hjust = 0.5),
  axis.title.y          = element_text(margin = margin(0, 10, 0, 0), size = rel(1.1),
                                       color = text_col, family = "text", face = "bold", hjust = 0.5),
  axis.text             = element_text(size = rel(0.8), color = text_col, family = "text"),
  axis.line.x           = element_line(color = "#252525", linewidth = .3),
  axis.ticks.x          = element_line(color = text_col),
  axis.title            = element_text(face = "bold"),
  panel.grid.minor      = element_blank(),
  panel.grid.major      = element_blank(),
  panel.grid.major.y    = element_line(color = "grey85", linewidth = .4),
)

6. Plot

Code

#  Line Chart
cumulative_line_chart <-
  # Geoms
  ggplot(
    cumulative_data,
    aes(x = year, y = cumulative_wins, group = artist_country, color = artist_country)
  ) +
  geom_line(
    data = cumulative_data |> filter(!artist_country %in% key_countries),
    linewidth = 0.25, color = "gray20", alpha = 0.3, linetype = "solid"
  ) +
  geom_line(
    data = cumulative_data |> filter(artist_country %in% key_countries),
    linewidth = 1.2
  ) +
  geom_point(
    data = latest_year_data,
    aes(color = artist_country), size = 4, shape = 21, fill = "white", stroke = 2
  ) +
  geom_text(
    data = latest_year_data,
    aes(label = str_glue("{artist_country} ({cumulative_wins})\n{year}")),
    vjust = -0.5,
    hjust = 0.2, nudge_x = 1, size = 4, fontface = "bold", lineheight = 1
  ) +

  # Scales
  scale_x_continuous(
    breaks = pretty_breaks(n = 5),
    limits = c(min(cumulative_data$year), max(cumulative_data$year) + 5)
  ) +
  scale_y_continuous(
    breaks = seq(0, 8, by = 2),
    limits = c(0, 8)
  )+
  scale_color_manual(values = col_palette) +
  coord_cartesian(clip = "off") +

  # Labs
  labs(
    x = "Year",
    y = "",
    color = "Country",
    title = title_text,
    subtitle = subtitle_text,
    caption = caption_text
  ) +

  # Theme
  theme(
    plot.title = element_text(
      size = rel(1.8),
      family = "title",
      face = "bold",
      color = title_col,
      lineheight = 1.1,
      margin = margin(t = 5, b = 5)
    ),
    plot.subtitle = element_markdown(
      size = rel(1.1),
      family = "subtitle",
      color = subtitle_col,
      lineheight = 1.1,
      margin = margin(t = 5, b = 20)
    ),
    plot.caption = element_markdown(
      size = rel(0.65),
      family = "caption",
      color = caption_col,
      lineheight = 1.1,
      hjust = 0.5,
      halign = 1,
      margin = margin(t = 15, b = 5)
    )
  )


# Show plot
cumulative_line_chart

7. Save

Code

### |-  plot image ----

# Save the plot again
ggsave(
  filename = here::here("data_visualizations/SWD Challenge/2024/swd_2024_11.png"),
  plot   = cumulative_line_chart,
  width  =  10,
  height =  8,
  units  = "in",
  dpi    = 320
)

### |-  plot thumbnail----
magick::image_read(here::here("data_visualizations/SWD Challenge/2024/swd_2024_11.png")) |>
  magick::image_resize(geometry = "400") |>
  magick::image_write(here::here("data_visualizations/SWD Challenge/2024/thumbnails/swd_2024_11.png"))

8. Session Info

Expand for Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 22631)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

loaded via a namespace (and not attached):
 [1] htmlwidgets_1.6.4 compiler_4.4.0    fastmap_1.2.0     cli_3.6.3
 [5] htmltools_0.5.8.1 tools_4.4.0       rstudioapi_0.16.0 yaml_2.3.10
 [9] rmarkdown_2.28    knitr_1.48        jsonlite_1.8.8    xfun_0.47
[13] digest_0.6.37     rlang_1.1.4       renv_1.0.3        evaluate_0.24.0

9. GitHub Repository

Expand for GitHub Repo

Access the GitHub repository here
